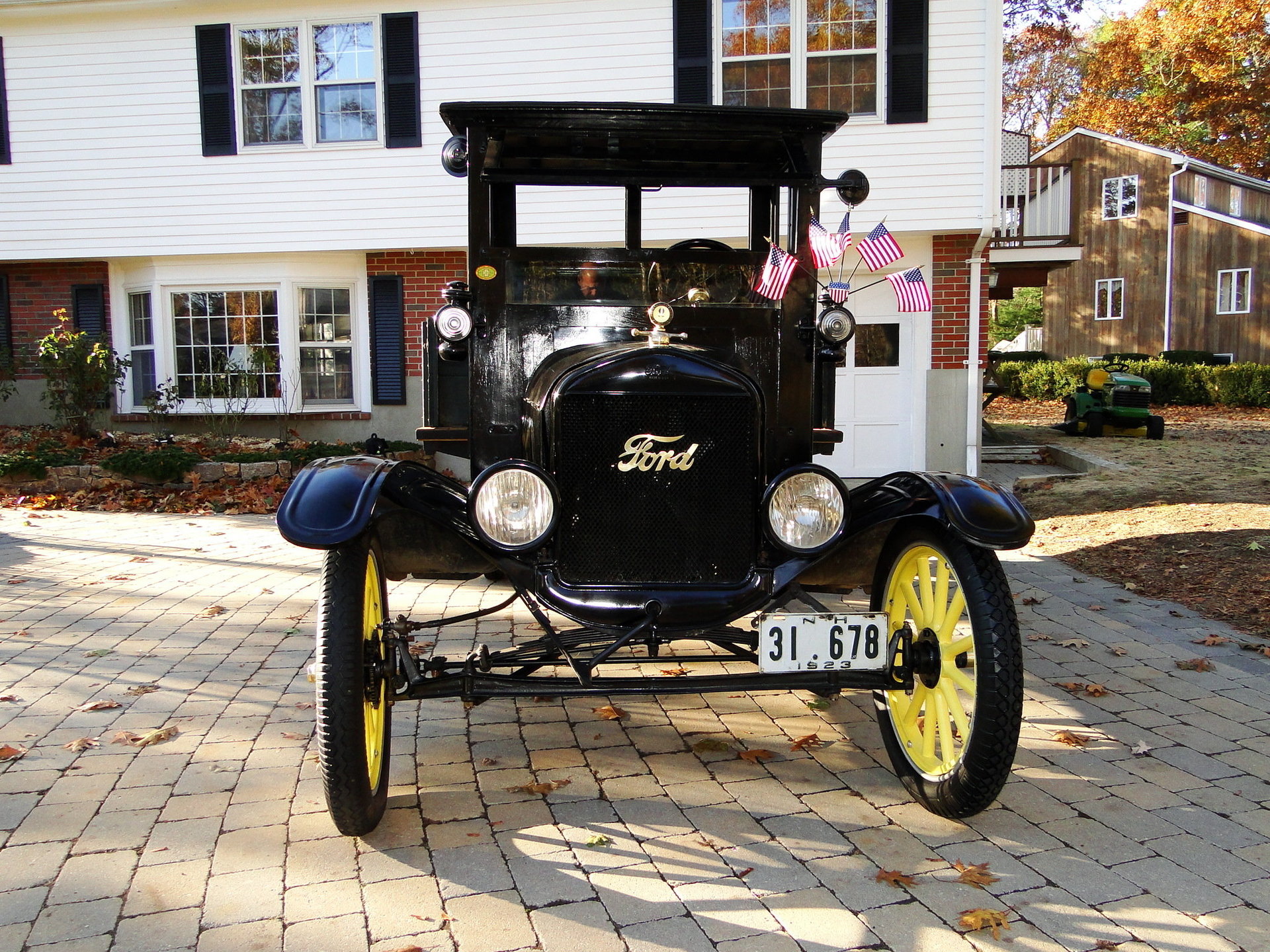

1923 Ford Model TT Truck

1923 Ford Model TT Truck. This Model TT has remained in the same ownership since 1970.

Since the current ownership this TT has been modified with such upgrades as a 1926-27 wide brake-band transmission which greatly improved the braking. An American Bosch ignition system was also added. An American Bosch (Essex Motors) Ignition System is a rare, original period accessory replacing Ford's unreliable and problematic timer, vibrators and coils, transmission magnets, stationary coils and manual spark advance. The original oversized TT truck tires were replaced with standard front 30 x 3.5” tires, enabling the need for only one spare tire. The cab roof height was also lowered slightly to allow the truck to clear a standard height garage door.

This Model TT also features:

A Martin-Parry #252A Universal Platform Express Body. Through 1925, Ford made the truck chassis' only. The rear Express Body (cargo bed and tail gate) has all original hardware, metal mfg. tags, paint, decals, and pin striping explaining the unrestored appearance. The front cab has a rare stamped serial number (1546), original seat frame and floor boards, professionally duplicated decals and applied pin striping as shown in the M-P Dealers catalog. This may possibly be the only existing M-P body in it's original, unrestored condition.

The engine and transmission are professionally rebuilt by master, museum quality antique auto restorers.

The TT Truck rear axle has an optional 5 1/16:1 worm gear set for higher top speeds. 7 ¼ gear set available.

All body parts are original Ford and Martin Parry.
The truck bed was reproduced from the Martin Parry Dealer's Catalog.
Safety glass front windows.
Professionally restored seat and backrest cushions.
A period reproduction transmission oil screen and particle magnet.
An AK-U-RET period reproduction oil level dipstick.
Oil Lamps: E & J and other, all working; including (2) side lamps, & (1) tail lamp assembly.
A period, after-market rear stoplight with an after-market transmission mounted switch.
Rear View mirrors, one on vehicle as purchased and (1) added.
New tire tubes and liners, including the spare.
Rebuilt original ammeter and a solid-state generator cutout.
A “Socony” wooden gas tank dipstick (gas gauge), found in the truck when purchased.
LeBaron-Bonney cab roof covering.
Floor boards and seat frame thought to be original with traces of M-P Brewster green body color.
Owner created data and comprehensive maintenance journal which will go with the successful transfer.
Driver and maintenance training available.
Original ignition switch and key with matching numbers (#55) and a Martin Parry brass key FOB.
Many years of “Model T Times” journals from The Model T Ford Club International (MTFCI).
Other original spare parts available at additional cost.


Engine Type
Engine Size
177 cubic inch I4
Fuel Specification


Body Color
Black & Green
Body Style
Pickup Truck
Paint Type


Model TT


Interior Color
Black & Green
Secondary Interior Color
Seating Type
Seat Material
Shifter Type
Center Console
Engine Size
177 cubic inch I4
Transmission Type
2 Speed Planetary gear
Body Style
Pickup Truck
